WR12
Wheel Rake

WR10 wheel rake

Looking for Kuhns MFG?

We’ve rebranded as Norden MFG! Same ownership, same great products, brand new name.

Wheel Rake

WR12

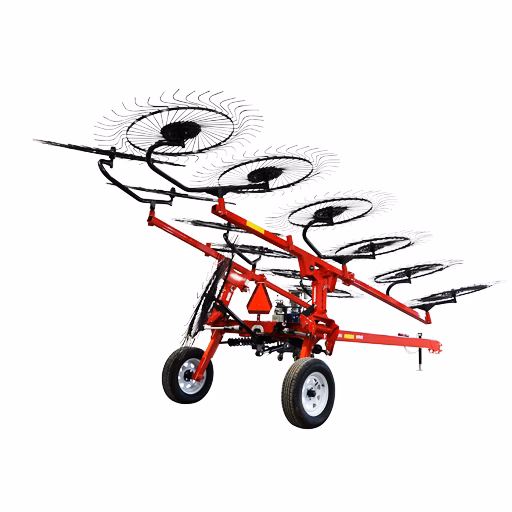

This mid-capacity 12-wheel hay rake is designed to maximize the amount of crop gathered into the windrow while minimizing dirt and ash content. Plenty of clearance for crops with tandem rake wheel action follows the contour of the ground.

The rake is also available in models with eight or ten wheels. There is also an optional kicker wheel to turn the center of the windrow.

Explore The

WR12 – 12 Wheel Hay Rake

Cleaner Hay and straw

Our industry-leading rake arm suspension allows for consistent flotation of the wheels through the range of motion. The extra large, heavy-duty flotation spring gives you the most control of ground forces. Light touch ground pressure minimizes dirt and ash content in your windrow.

SYNCHRONIZED ARM LIFT

Turn around at the end of the field quickly with the arms raising at the same time. The hydraulic flow divider causes the arms to raise at the same rate.

headland Lock

Start raking sooner by only partially raising the rake arms. The headland lock automatically limits the lift height and increases efficiency by spending less time lowering the arms.

Single Side Raking

Roll the windrow or rake a narrow swath by lowering either rake arm. Each lift cylinder is supplied through a lockout bypass valve that lets you easily select which side you want.

Toolless Adjustability

Full adjustability with no tools required. Width, rake arm angle, and ground pressure can all be adjusted with no tools.

Transport Lock

Safely travel with rake arms locked up in transportation mode. A simple rope pull unlocks the arms when you reach the field.

Wheel Rake Lift Arm

Optional Kicker Wheel

The optional kicker wheel lifts any unturned crop into the windrow. Integrating all of the hay or straw into the windrow promotes consistent crop moisture and quality.

Detailed specs

Dimensions

23’L x 10’8″W x 8’4″H

Approximate Weight

1900 lbs

Min-Max Pickup

18′ 11″ – 24′ 5″

Windrow

3’4″-7’4″
