E10 Bale
Accumulator System

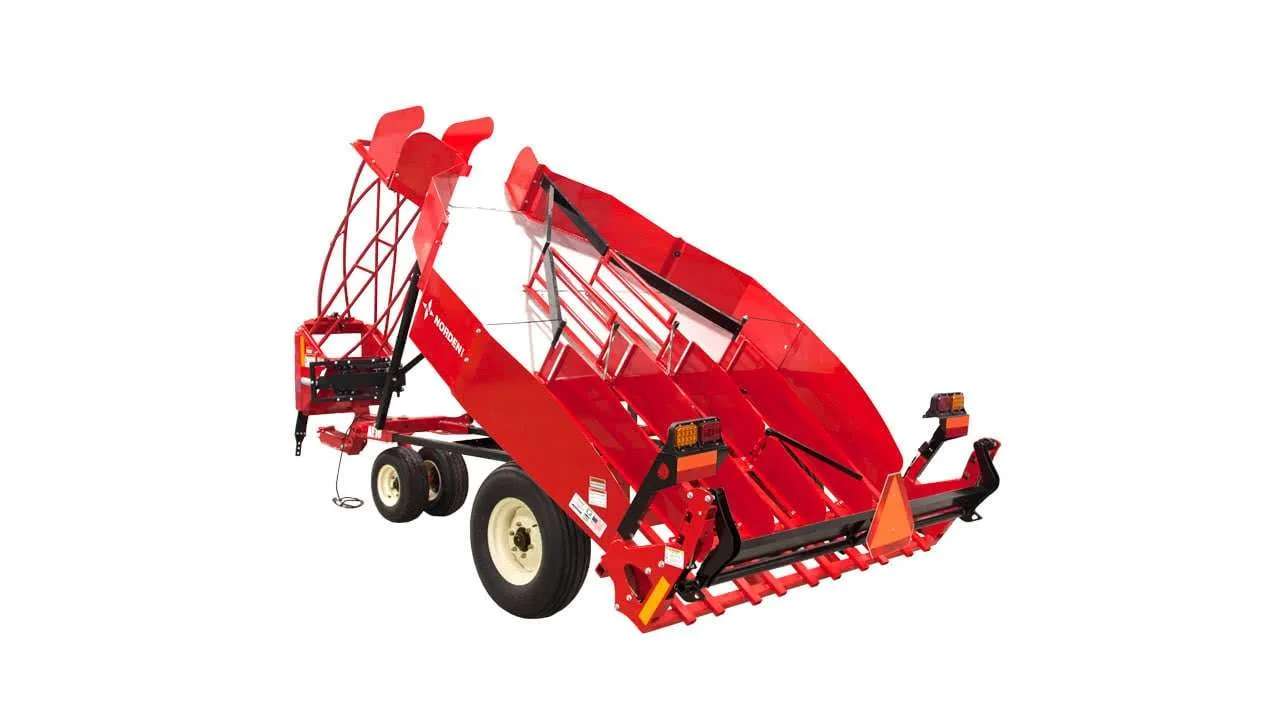

The Norden Bale accumulator system for 10 hay bales on edge, the E10 is fairly popular. Small loader size and matching legacy bale grapples from competing brands, the accumulator is a nice upgrade for many operators. The small group size is not demanding for the loader and is easy to fit into many barns. We recommend the E10 system for farms producing 10,000 to 20,000 bales per year.
Square Bale Accumulator For 10 Bales on Edge
Twisted Chute
The twisted chute turns each bale onto its side, while the baler provides the force needed to push the bales to the top of the chute.
Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
Gravity-Driven Gates and Final Bale Trip
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
Automatic Rear Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs automatically return all the gates back to their starting position, and the rear gate snaps back shut, ready for the next bale.
Cornering Guide Belt
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
72″ Wide by 64″ to 80″ Long
Required Loader Capacity
2,130 lbs
Working Height
9 ft. 2 in.
Working Length
17 ft. 4 in.
Working Width
7 ft. 10 in.
Bale Handlers
For the 10E Accumulator System
510 Grabber
Cast steel bale hooks
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
Detailed Specs
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
72″ Wide by 64″ to 80″ Long
Required Loader Capacity
2,130 lbs
Working Height
9 ft. 2 in.
Working Length
17 ft. 4 in.
Working Width
7 ft. 10 in.
KN510 Tie-Grabber
features etc.
Squeeze Arm
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
Loader Mount
This customizable option allows you the flexibility to move between multiple loader hookups.
Twine Arm
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
Multiple Hose Options
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
Detailed Specs
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
72″ Wide by 64″ to 80″ Long
Required Loader Capacity
2,130 lbs
Working Height
9 ft. 2 in.
Working Length
17 ft. 4 in.
Working Width
7 ft. 10 in.
Sq72 Bale Squeeze
strong Where Needed
Designed and built with precision, this squeeze maximizes lifting capacity while providing the necessary strength. Developed in collaboration with the experts at Clerf, upgrade your operation and experience effortless bale handling today.
MOVE MANY BALES IN A SHORT ORDER
Moving multiple tied layers of bales in a single move will save you the maximum amount of time. Capable of handling up to 4,000 lbs., this squeeze allows you to move up to eighty, 50 lb. bales at once, streamlining your operations and increasing productivity. The only question is if your loader can take it.
YOUR LOADER, YOUR BALE SQUEEZE
Whether it is your skid steer, telehandler, or forklift we likely already have the ability to attach to it. We have the technology to make it happen.
Detailed Specs
Shipping Dimensions
Working Dimensions
Approximate Weight
Group Size
72″ Wide by 64″ to 80″ Long
Maximum Lifting Capacity
2,130 lbs
Bale Packs
5 Bales Wide and 2 Bales Long
AE10 Bale Accumulator
This accumulator arranges bales on edge with 5 bales wide and 3 bales long. This is our second largest bale accumulator and handles small square bales from 32″ to 40″ in length. It is paired with the 615 Grabber and the KN615 Tie-Grabber.
These bundle dimensions are ideal for 9′ x 20′ wagons which also allows the wagons to be completely filled without wasted space. A benefit of this accumulator model is that it offers a 33% time-saving advantage over any 10-bale system. With each set of bales, the AE15 bale accumulator contains 50% more bales with a 33% reduction in the number of packs.
Twisted Chute
The twisted chute turns each bale onto its side, while the baler provides the force needed to ush the bales to the top of the chute.
Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
Gravity Driven Gates and Bale Lever
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
Automatic Lift Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs and counterweights automatically return all the gates back to their starting position, ready for the next bale.
Guide Belting
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
Detailed Specs
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
70” Wide by 96” to 132” Long
Required Loader Capacity
2,480 lbs.
Working Height
11 ft. 2 in.
Working Length
21 ft. 5 in.
Working Width
7 ft. 10 in.
KN510 Tie-Grabber
features etc.
Squeeze Arm
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
Loader Mount
This customizable option allows you the flexibility to move between multiple loader hookups.
Twine Arm
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
Multiple Hose Options
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
Detailed Specs
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
72″ Wide by 64″ to 80″ Long
Required Loader Capacity
2,130 lbs
Working Height
9 ft. 2 in.
Working Length
17 ft. 4 in.
Working Width
7 ft. 10 in.
510 Grabber
Cast steel bale hooks
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
Detailed Specs
Bale Configuration
5 Bales Wide and 2 Bales Long
Bundle Dimensions
72″ Wide by 64″ to 80″ Long
Required Loader Capacity
2,130 lbs
Working Height
9 ft. 2 in.
Working Length
17 ft. 4 in.
Working Width
7 ft. 10 in.
